X Ray Detection Automatic Film Processor AC 170 - 240V For Film Observation

Introduction

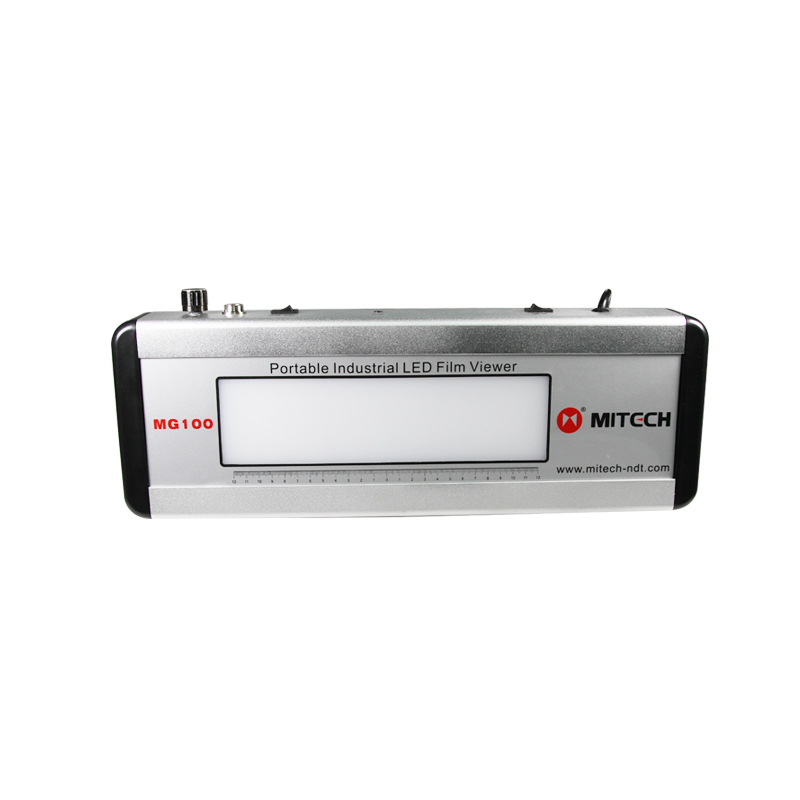

Mitech MG100 portable LED film viewer,can check the X-ray film one by one. With high-power LED light source, surface observation screen acrylic material, stable performance, strong structure, high uniformity, simple operation, user-friendly LED limit temperature, stepless dimming, can meet the needs better,which is widely used in X Ray detection for film observation and evaluation.It is the necessary professional precision testing equipment for improving production efficiency and saving production costs.

Operation and use

• Open the power, pedal / manual switch switch placed in the manual position, observe the window light, then the brightness adjustment knob can adjust the window luminous intensity;
• When using the foot switch, connect the foot switch to the watch lamp, the pedal / manual switch is placed in the pedal position, you can use the pedal operation, and can rotate the brightness adjustment knob to adjust the watching light brightness;

• In the power on, according to the needs of the film, press the top of the light area adjustment button to adjust the light area.

Maintenance and Care

Mitech MG100 portable LED view film lights is a precision detection equipment, the use of special attention should be paid to the following:

• Read the manual carefully before using the instrument. Learn the operation steps and attentions to avoid damage the instrument or personal safety accidents caused by improper operation;

• Do not block the LED view lamp vents, to avoid overheating the instrument, causing damage;
• When transport mobile LED view film lights, should avoid severe vibration, so as not to damage the internal devices;
• After using, please receive the shade, to prevent the loss of the shade, affecting the future use;
• When connection equipment, should be careful, moderate efforts, not to plug, hard pull;

• Do not disassemble the instrument.Any related matters of repair, please contact the Department of Mitech Instrument Services, 4000600280.
